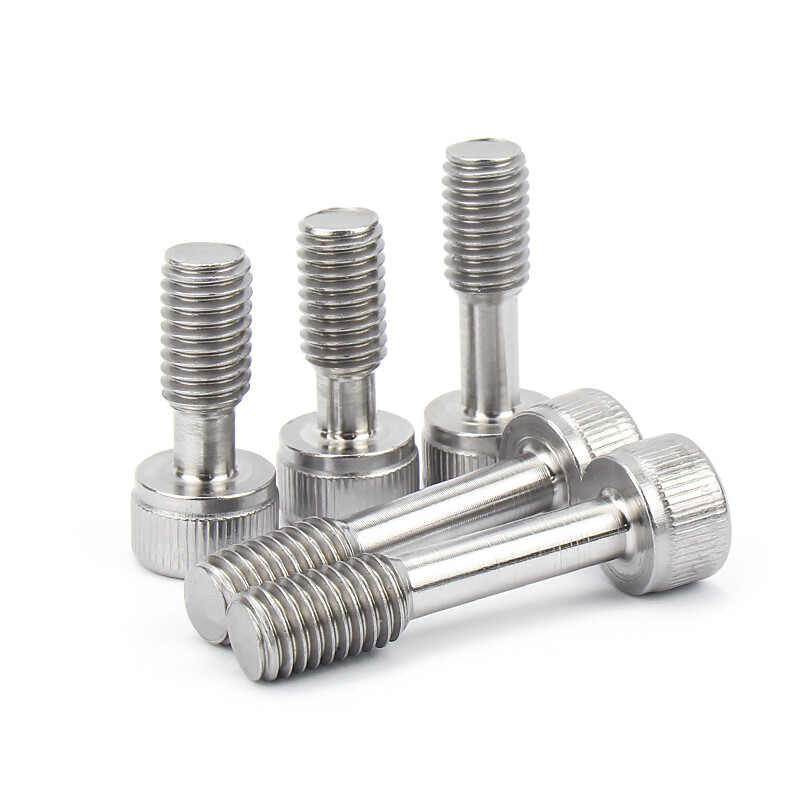

metric SS304 stainless steel partially threaded thumb cylindrical head hexagon socket waisted shank blot 1 pcs
$0.1114
Thread Type: metric Material: SS304 stainless steel Threading: partially threaded Fastener screw type: thumb cylindrical head hexagon socket waisted shank blot
d |
Pitch |
ds | dk |
k |
t |
b |
|
| max | min | ||||||
| M3 | 0.5 | 2 | 1.86 | 5.5 | 2.92 | 1.3 | 4 |
| M4 | 0.7 | 2.8 | 2.66 | 7 | 3.91 | 2 | 6 |
| M5 | 0.8 | 3.5 | 3.32 | 8.5 | 4.91 | 2.5 | 8 |
| M6 | 1 | 4.5 | 4.32 | 10 | 5.85 | 3 | 10 |
| M8 | 1.25 | 5.5 | 5.32 | 12 | 7.82 | 4 | 12 |
| M10 | 1.5 | 7 | 6.78 | 16 | 9.82 | 5 | 15 |
