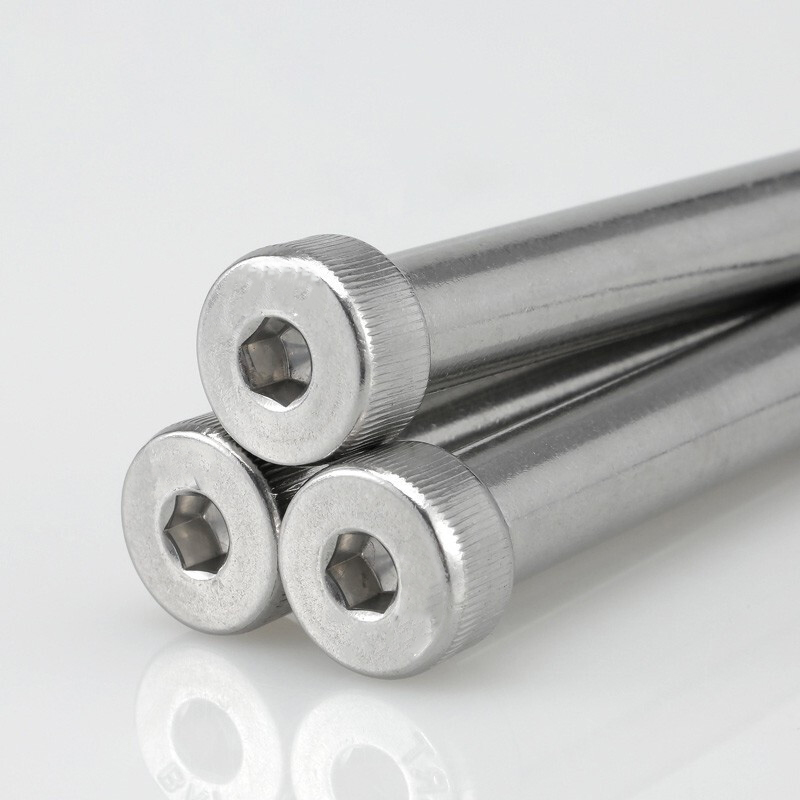

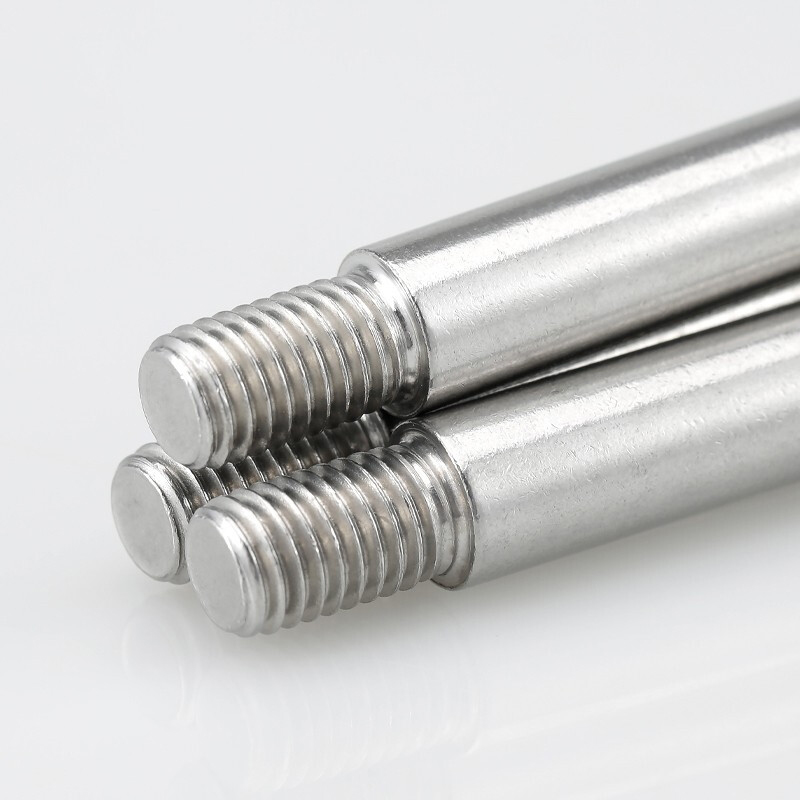

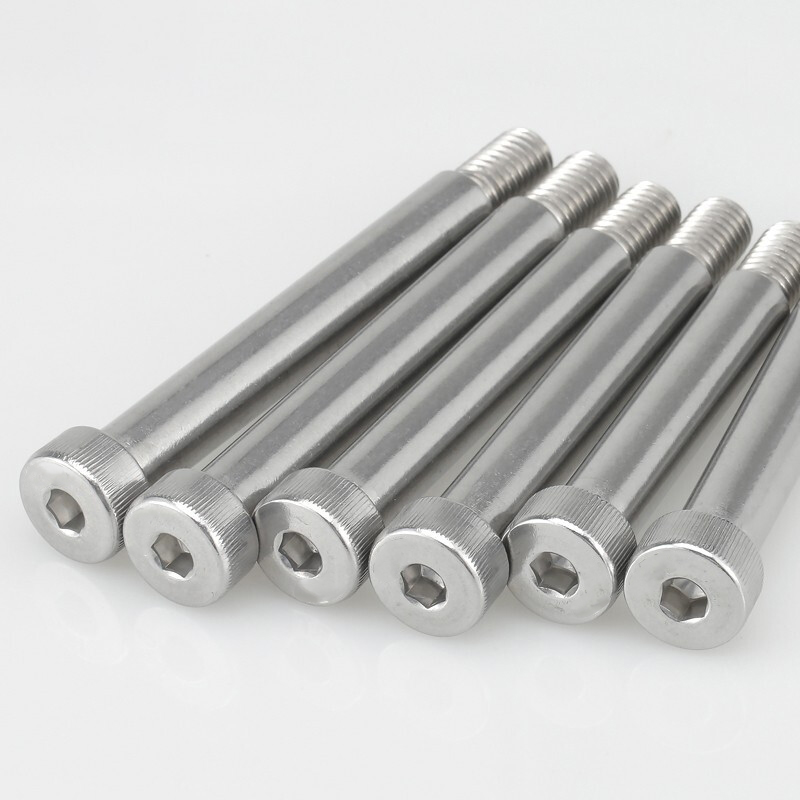

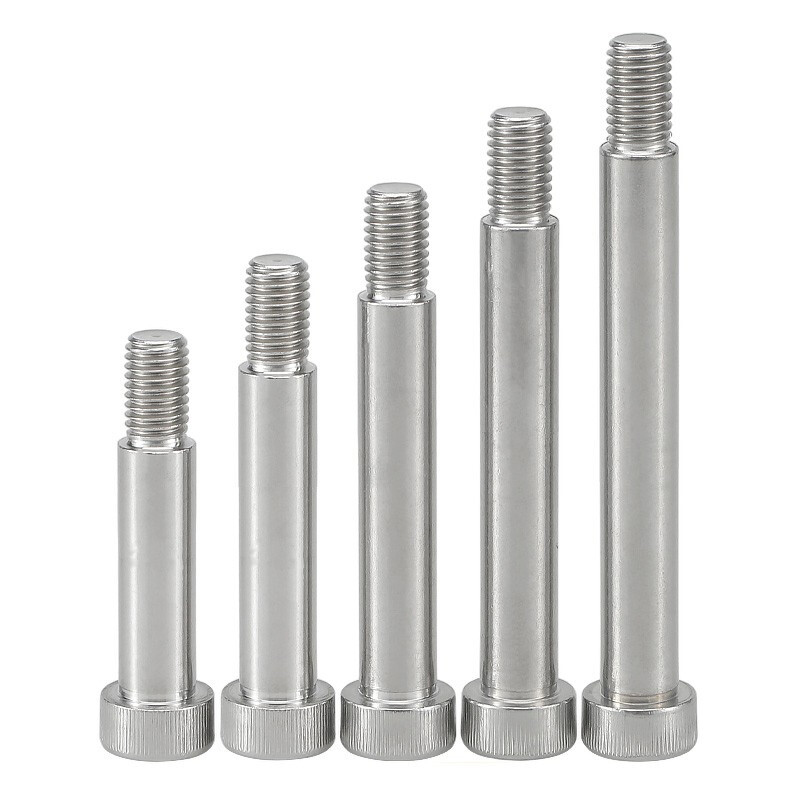

metric SS304 stainless steel thumb cylindrical head hexagon socket shoulder blot 1 pcs
$0.2837
Thread Type: metric Material: SS304 stainless steel Threading: fully threaded Fastener screw type: thumb cylindrical head hexagon socket shoulder blot
| D | d | Pitch | dk | t | E | s |
| 2.5 | M2 | 0.4 | 4.8 | 2.4 | 4 | 2 |
| 3 | M2.5 | 0.45 | 5.8 | 2.8 | 5 | 2 |
| 4 | M3 | 0.5 | 6.9 | 3.3 | 6 | 3 |
| 5 | M4 | 0.7 | 9 | 3.5 | 8 | 3 |
| 6 | M5 | 0.8 | 10.00 | 4.35 | 10 | 3 |
| 8 | M6 | 1.0 | 12.75 | 5.50 | 11.5 | 4 |
| 10 | M8 | 1.25 | 15.75 | 6.75 | 13.2 | 5 |
| 12 | M10 | 1.5 | 17. 90 | 8.75 | 16.5 | 6 |
