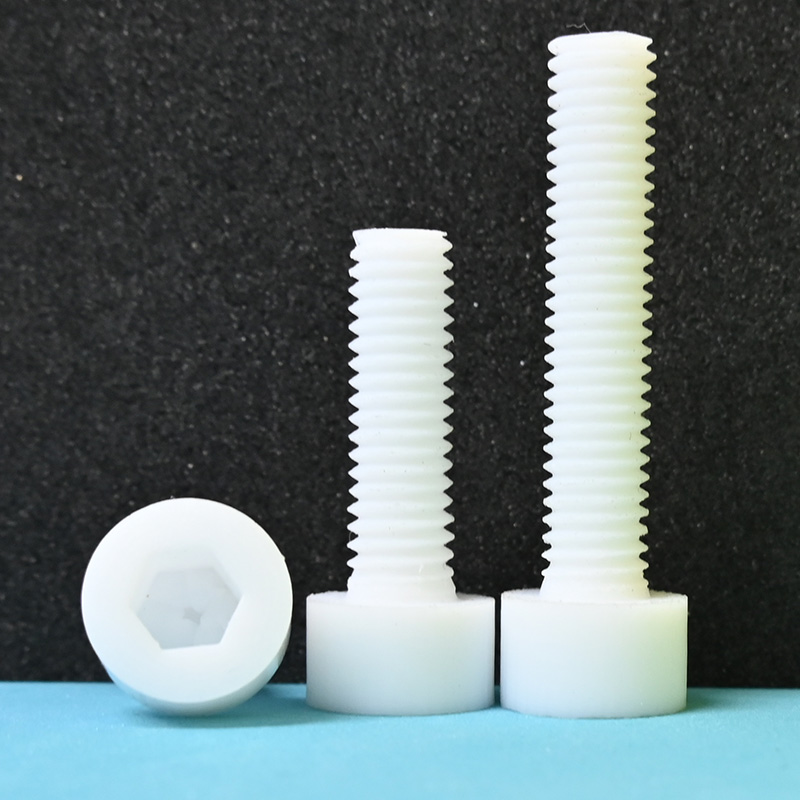

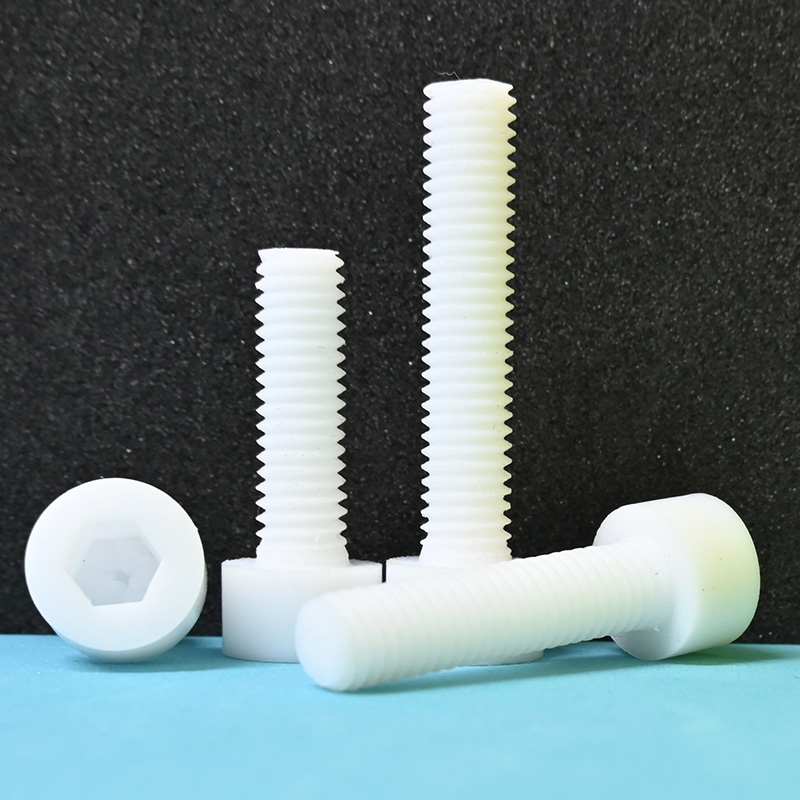

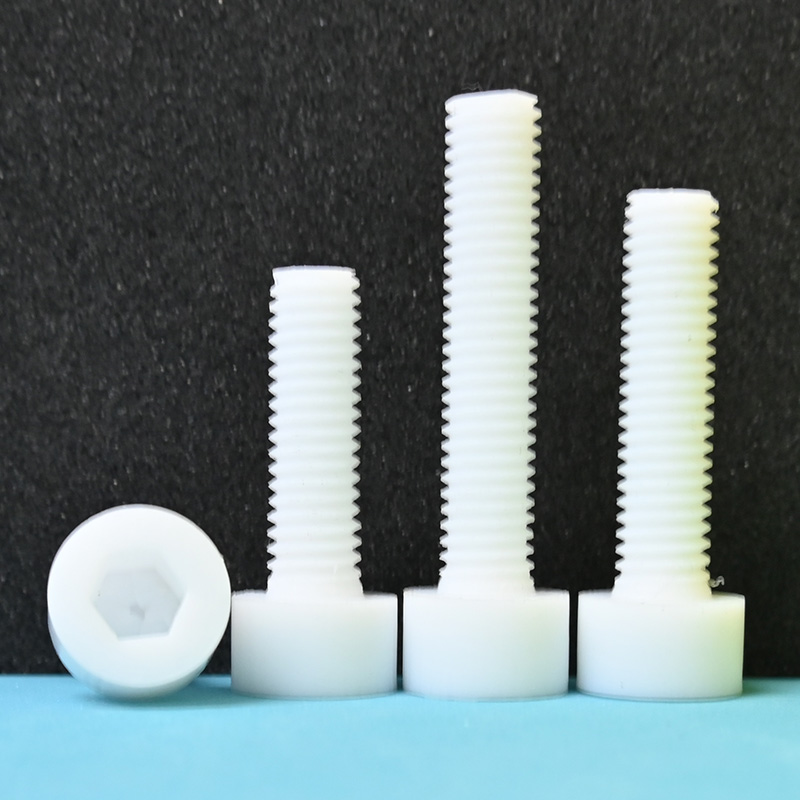

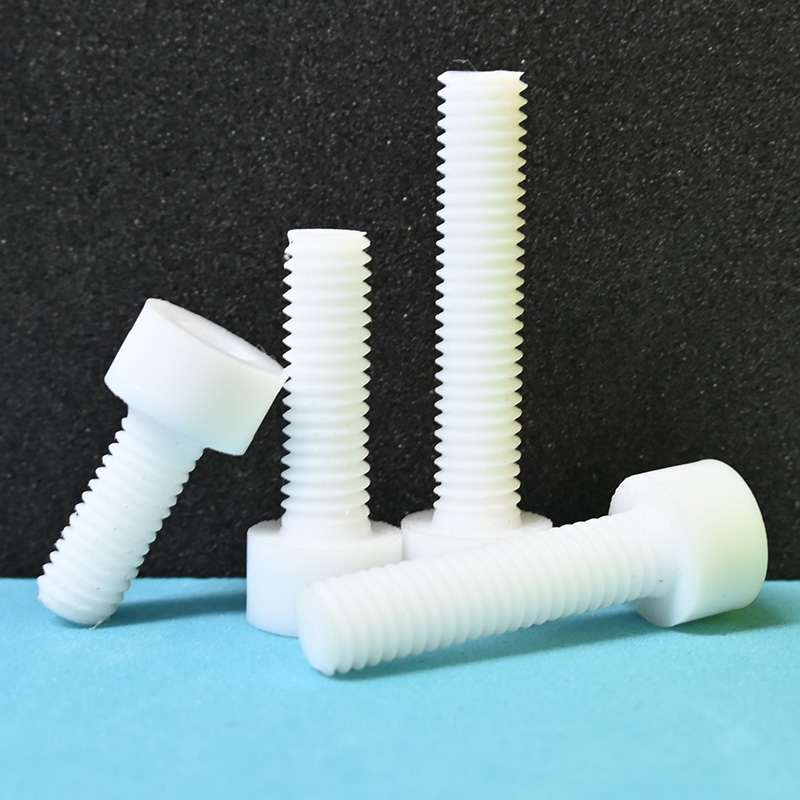

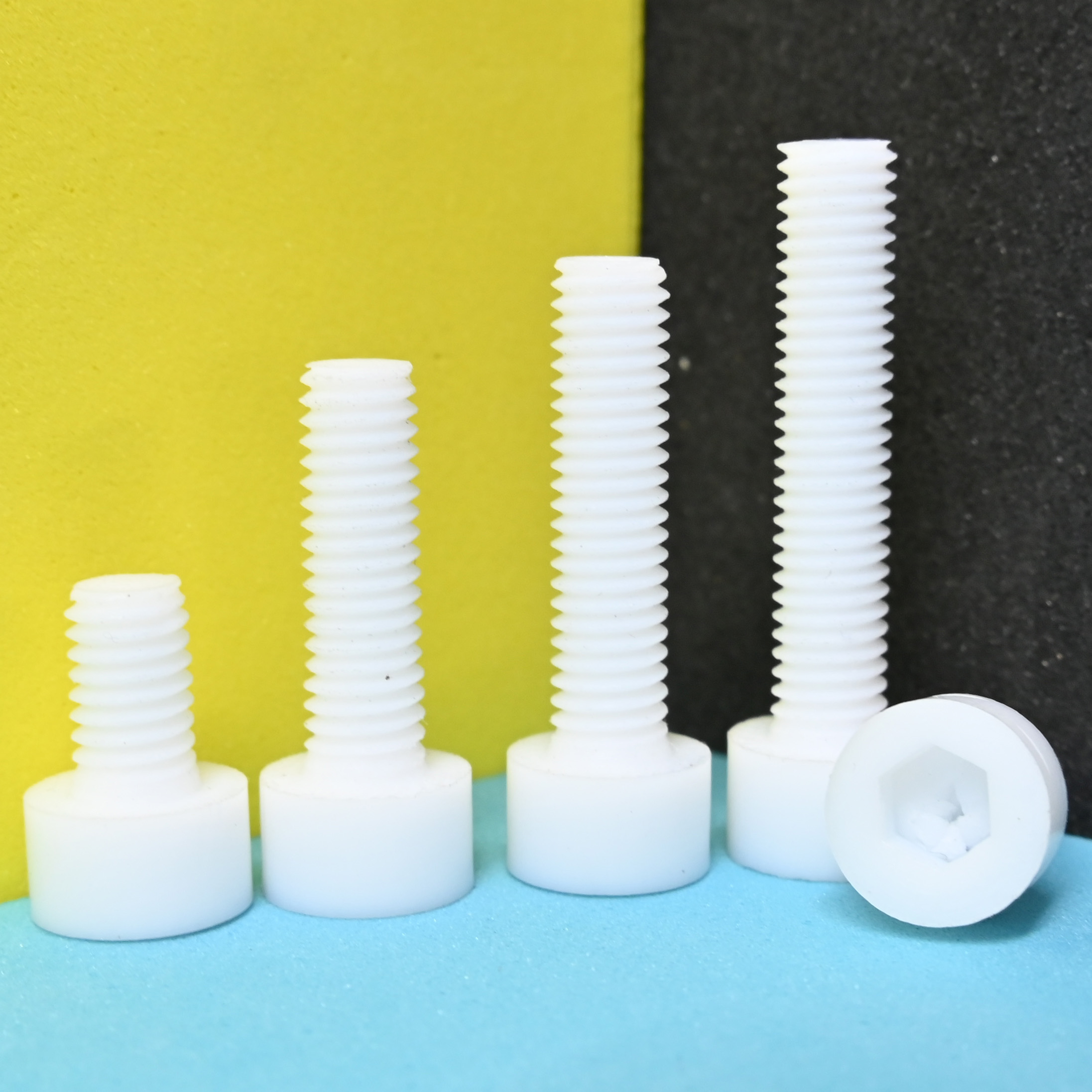

metric PTFE cylindrical head hexagon socket blot 1 pcs


$1.1429


Diameter :

Length :


Add to cart


Thread Type: metric       Material: PTFE       Threading: fully threaded       Fastener screw type: cylindrical head hexagon socket blot



Diameter
d
Thread pitch
P
dk k s t
max min max min max min min
M1.4 0.3 2.74 2.46 1.4 1.26 1.36 1.32 0.6
M1.6 0.35 3.14 2.86 1.6 1.46 1.56 1.52 0.7
M2 0.4 3.98 3.62 2 1.86 1,56 1.52 1
M2.5 0.45 4.68 4.32 2.5 2.36 2.06 2.02 1.1
M3 0.5 5.68 5.32 3 2.86 2.58 2.52 1.3
M4 0.7 7.22 6.78 4 3.82 3.08 3.02 2
M5 0.8 8.72 8.28 5 4.82 4.095 4.02 2.5
M6 δΈ€ 10.22 9.78 6 5.7 5.14 5.02 3
M8 1.25 13.27 12.73 8 7.64 6.14 6.02 4
M10 1.5 16.27 15.73 10 9.64 8.175 8.025 5
M12 1.75 18.27 17.73 12 11.57 10.18 10.025 6
M14 2 21.33 20.67 14 12.57 12.21 12.032 7
M16 2 24.33 23.67 16 15.57 14.21 14.032 8
M20 2.5 30.33 29.67 20 19.48 17.23 17.05 10
