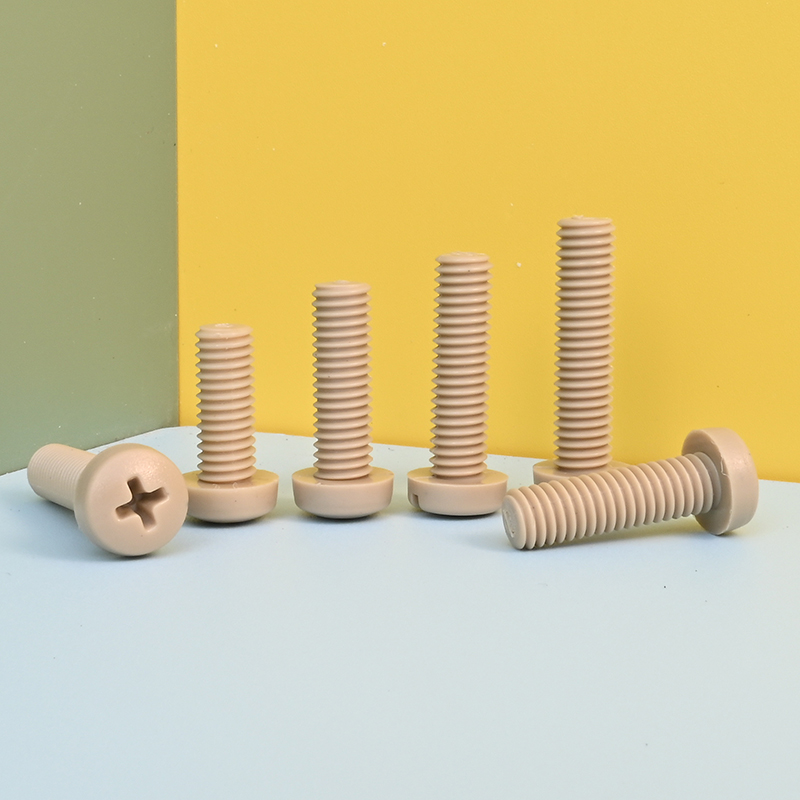

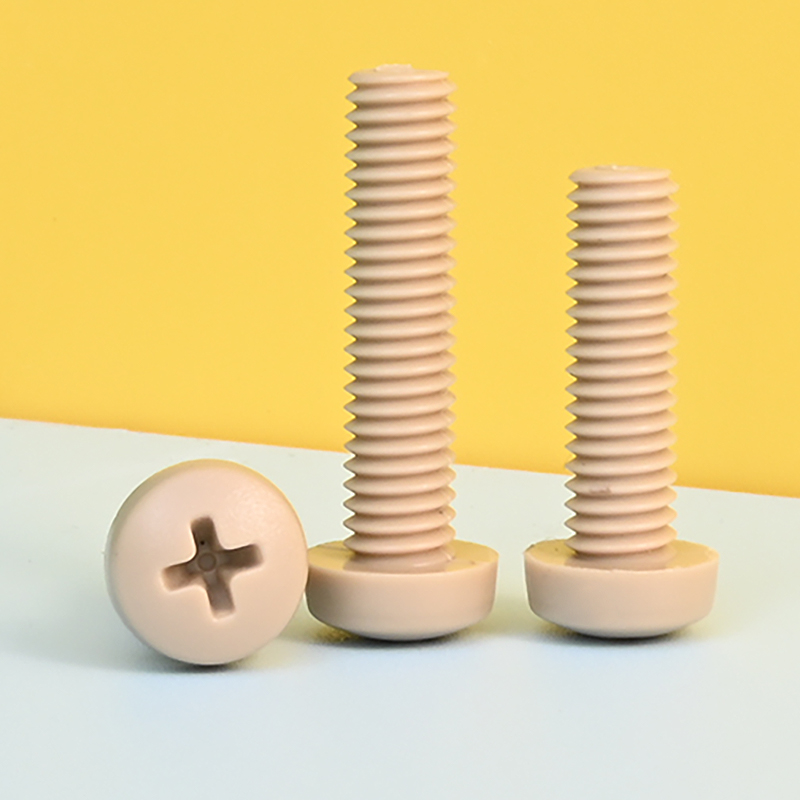

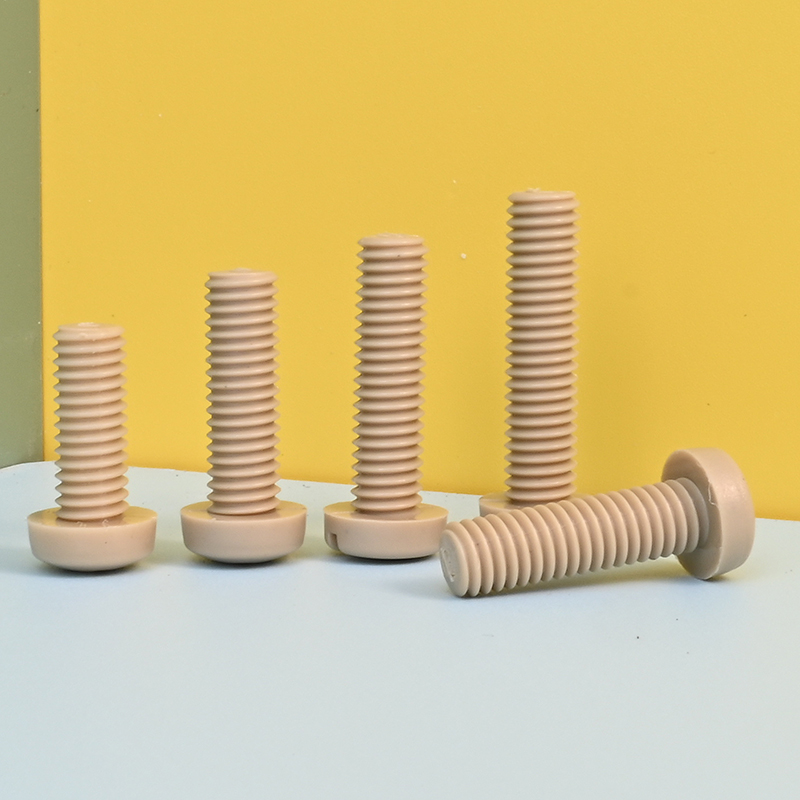

metric PEEK cross round head blot 1 pcs


$0.8857


Diameter :

Length :


Add to cart


Thread Type: metric       Material: PEEK       Threading: fully threaded       Fastener screw type: cross round head blot


Introduction to Special Plastic Screws:

Screws mainly refer to special plastic screws made of special engineering plastics,
used at temperatures above 150C, and possessing properties such as corrosion resistance, high strength, radiation resistance, food grade.

StrengthRENY > PPS > Torlon (PAI) > PEEK > Vespel (PI) > PVDF
TemperatureVespel (PI)  > Torlon (PAI)  > PEEK > PPS > PVDF >  RENY
Corrosion resistancePVDF > PEEK > PPS > Vespel (PI)  > Torlon (PAI)  >  RENY

Torsional fracture torque

Vespel (PI)Torlon ( PAI )PEEKPPSPVDFRENY
M2.5--0.2N.m0.16N.m0.19N.m--0.24N.m
M30.19 N.m0.4 N.m0.3N.m0.36 N.m0.22 N.m0.39 N.m
M40.32N.m0.81N.m0.64 N.m0.71N.m0.4N.m0.79N.m
M50.42 N.m1.64 N.m1.28N.m1.42 N.m0.64 N.m1.77 N.m
M60.51 N.m2.81 N.m2.26N.m2.11 N.m0.88 N.m2.94N.m
M81.09 N.m6.06N.m5.98N.m5.29 N.m2.65 N.m7.85N.m
M10--12.03 N.m10.8N.m11.8N.m3.9 N.m12.75N.m
M12--22.1N.m18.6N.m20.6 N.m9.2N.m24.5N.m

tensile breaking strength

Vespel (PI)forlon 《PAI)PEEKPPSPVDFRENY
M2.5--500 N312 N440 N--588 N
M3193 N610 N430N570 NL07 N635N
M4445 N1050 N765 N980 N314NL470 N
M5526 N2200 N1230 N1570N640 N2450 N
M6607 N3001N1 670 N2250N940 N3140 N
M8805 N48 00 N3090 N3720N1810N5100 N
M10--6600 N4900 N5890 N2700 N6900 N
M12--7600 N7360 N7850 N3980 N8700 N

Temperature resistance

MaterialTemperature resistance
Vespel (PI)350'C, No melting point
Trolon (PAl)280'C
PEEK260'C
PPS220C
PVDF150C
RENY PA-MXD6105C

Diameter d dk k
M11.80.6
M1.21.220.7
M1.41.42.50.8
M1.61.62.70.9
M1.71.731.1
M223.21.3
M2.52.54.21.6
M335.21.7
M446.62.2
M558.53.2
M6610.13.4
M88134.3
M101019.66.8
